FLANGE GUARD

HEMIND®'s Flange Guard

Flanged joints on pipeline systems are an enormous source of danger and especially wherever they are used to transport poisonous, flammable or caustic liquids. In case of seal breakage, the result is a danger zone with a diameter of up to 40 meters. In order to reduce this zone to a minimum, flanged joints must be provided with a suitable form of spray protection

  • Spray Protection
  • Adjustable latching Slots
  • Installation and removal without tools and auxiliary equipment
  • No sliding off in the case of vertically laid pipelines
  • Materials: Polypropylene, MS RL and stainless steel
  • Shortest delivery time

The HEMIND FLANGE GUARD is designed as a spray protection ring that uses an adjustable latching slot and a centering ring to prevent the sliding off from the flange joint and with extremely simplified handling steps for guaranteed prevention of dangerous spraying of materials whenever a gasket or seal gives way . The versatile characteristics that has established this safety device to become the reliable standard equipment of safety-conscious companies.

OH NO...!

WHAT? HUMAN HAZARD / ENVIRONMENTAL HAZARD, MATERIAL LOSS!

WHY...? BECAUSE OF LEAKAGE & SPLASHING FROM FLANGE JOINT!!

Don't Worry

Use HEMIND®'s FLANGE GUARD and

  • Prevent the Hazards
  • Prevent the irreplacable human loss
  • Save the environment
  • Minimize the loss of material occuring through leakages

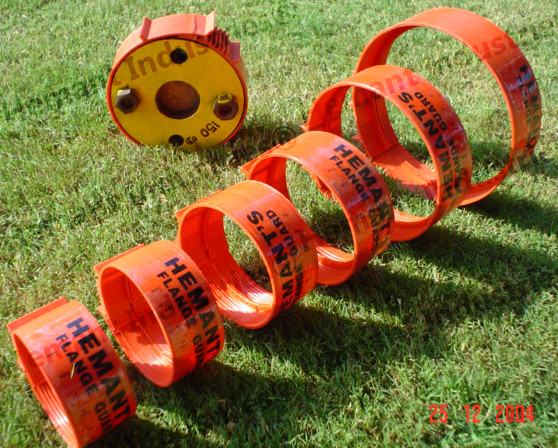

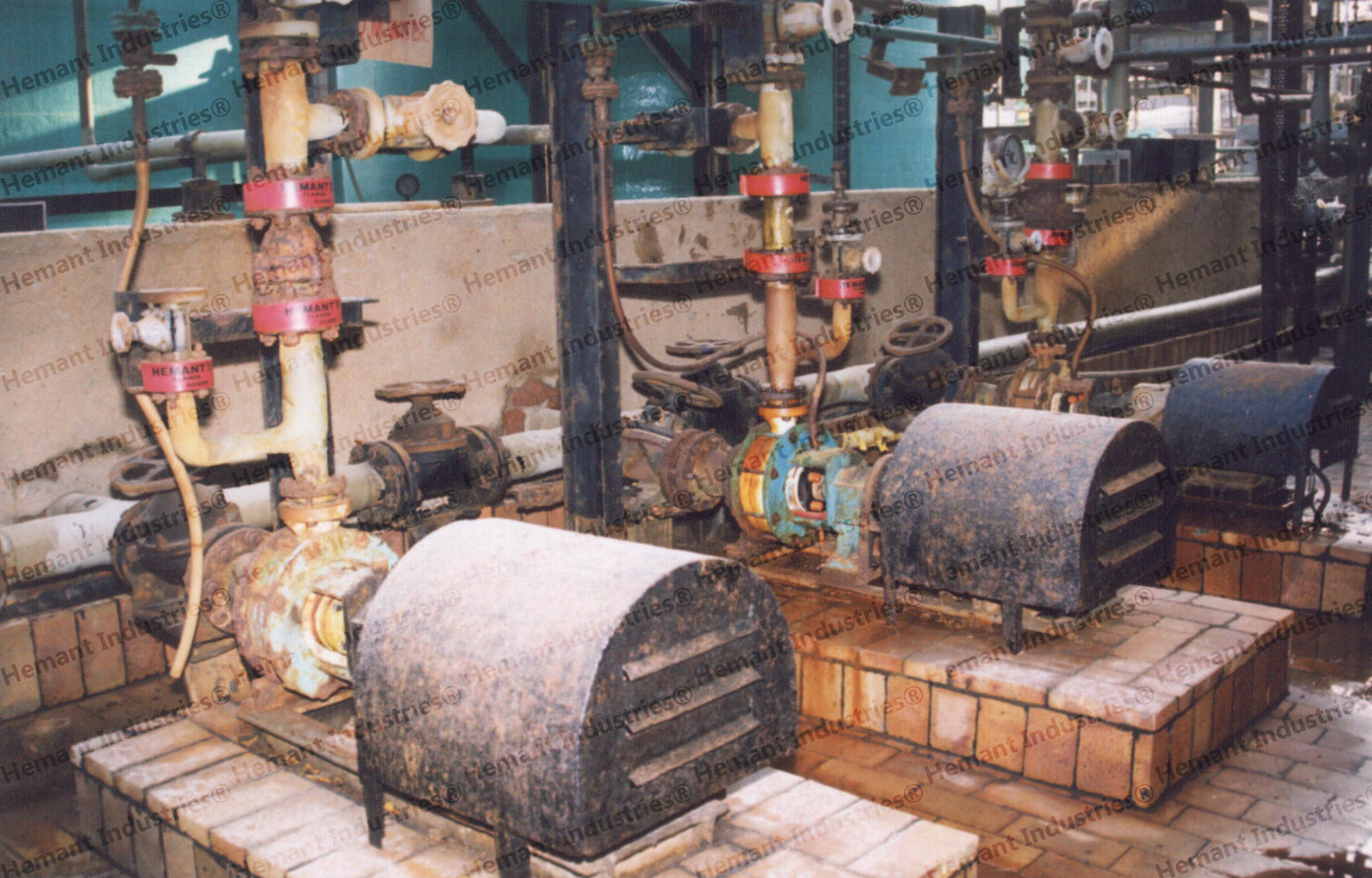

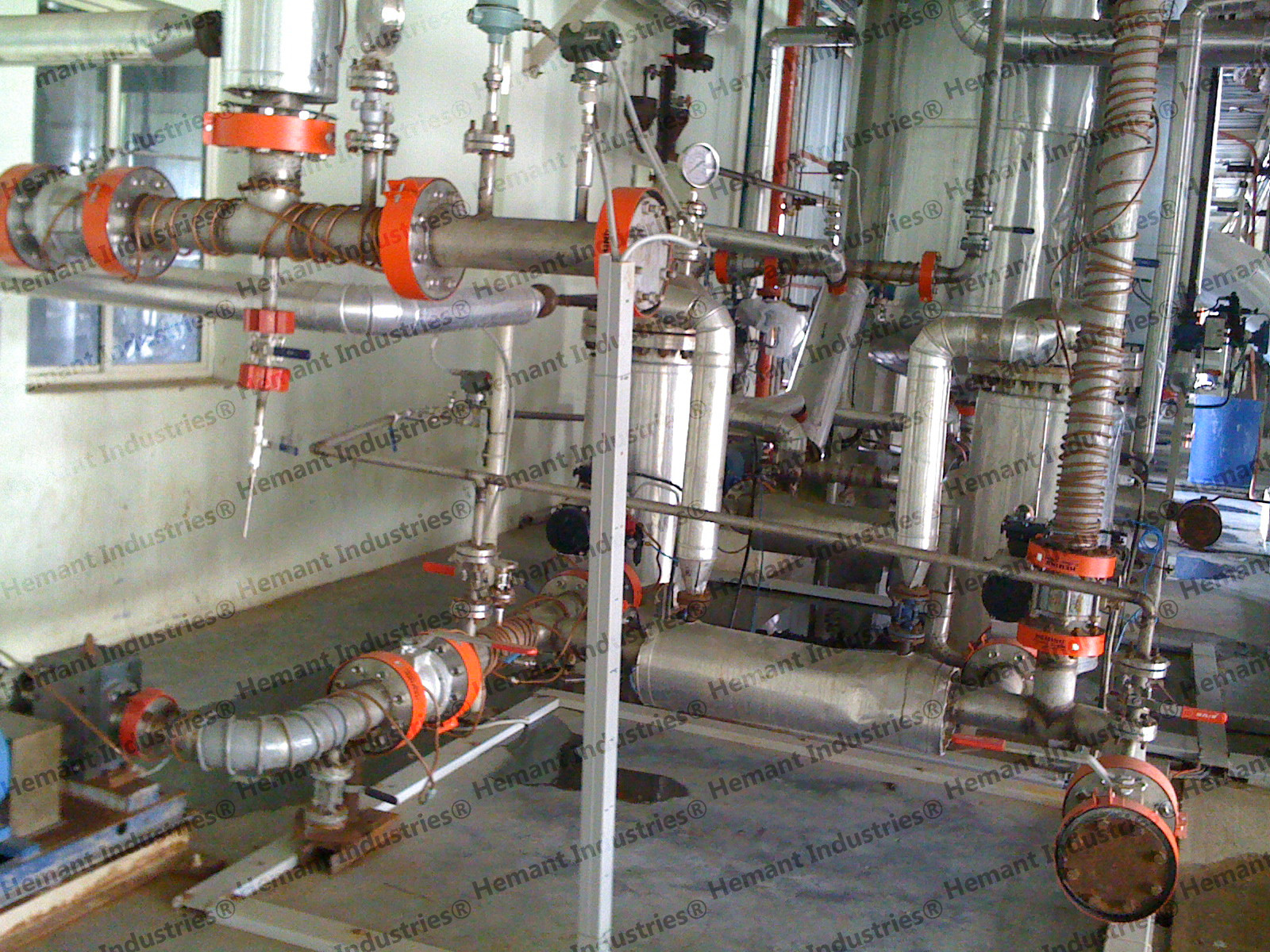

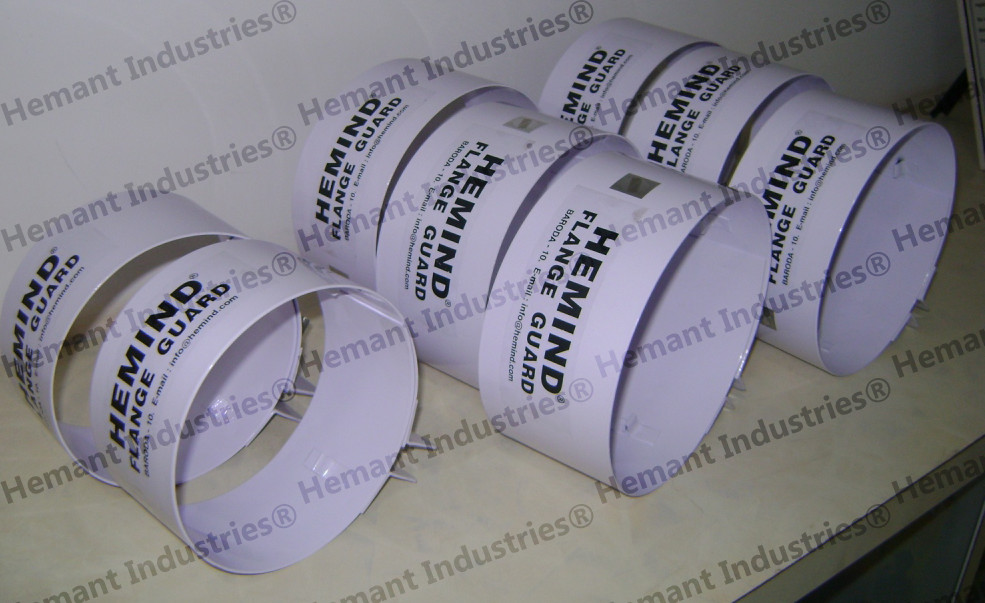

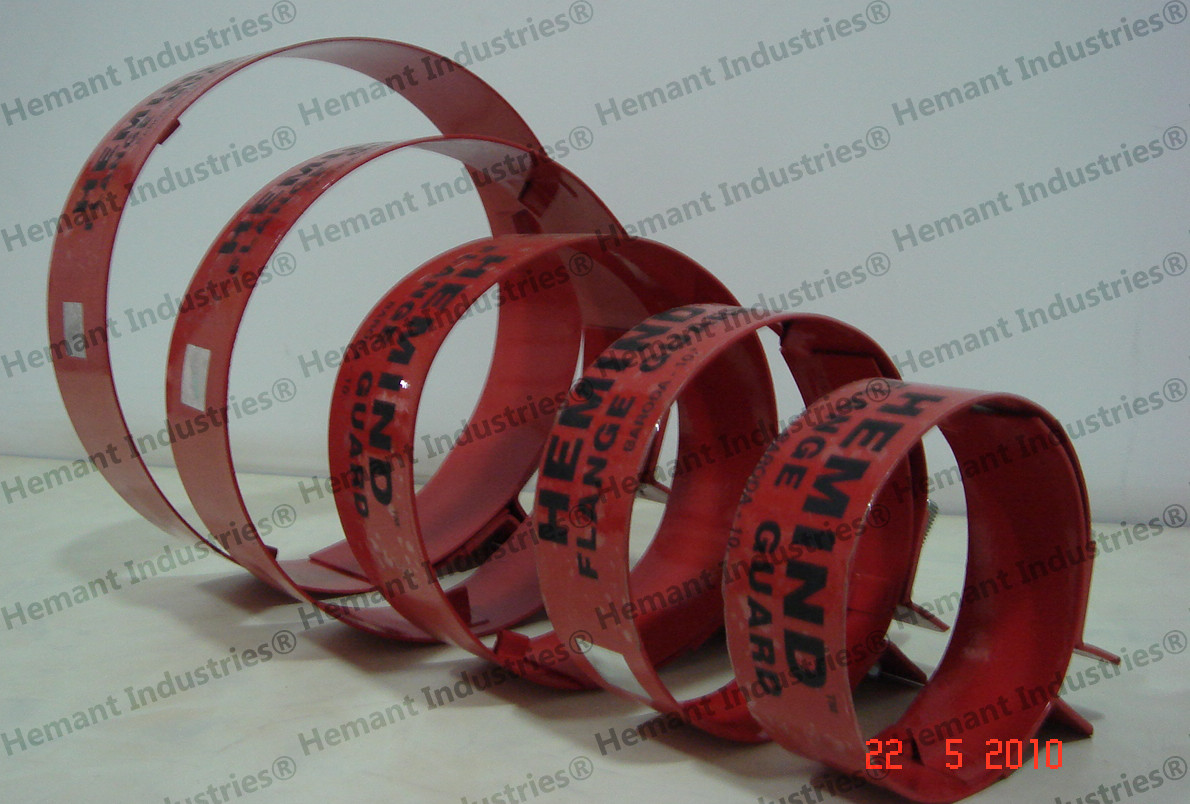

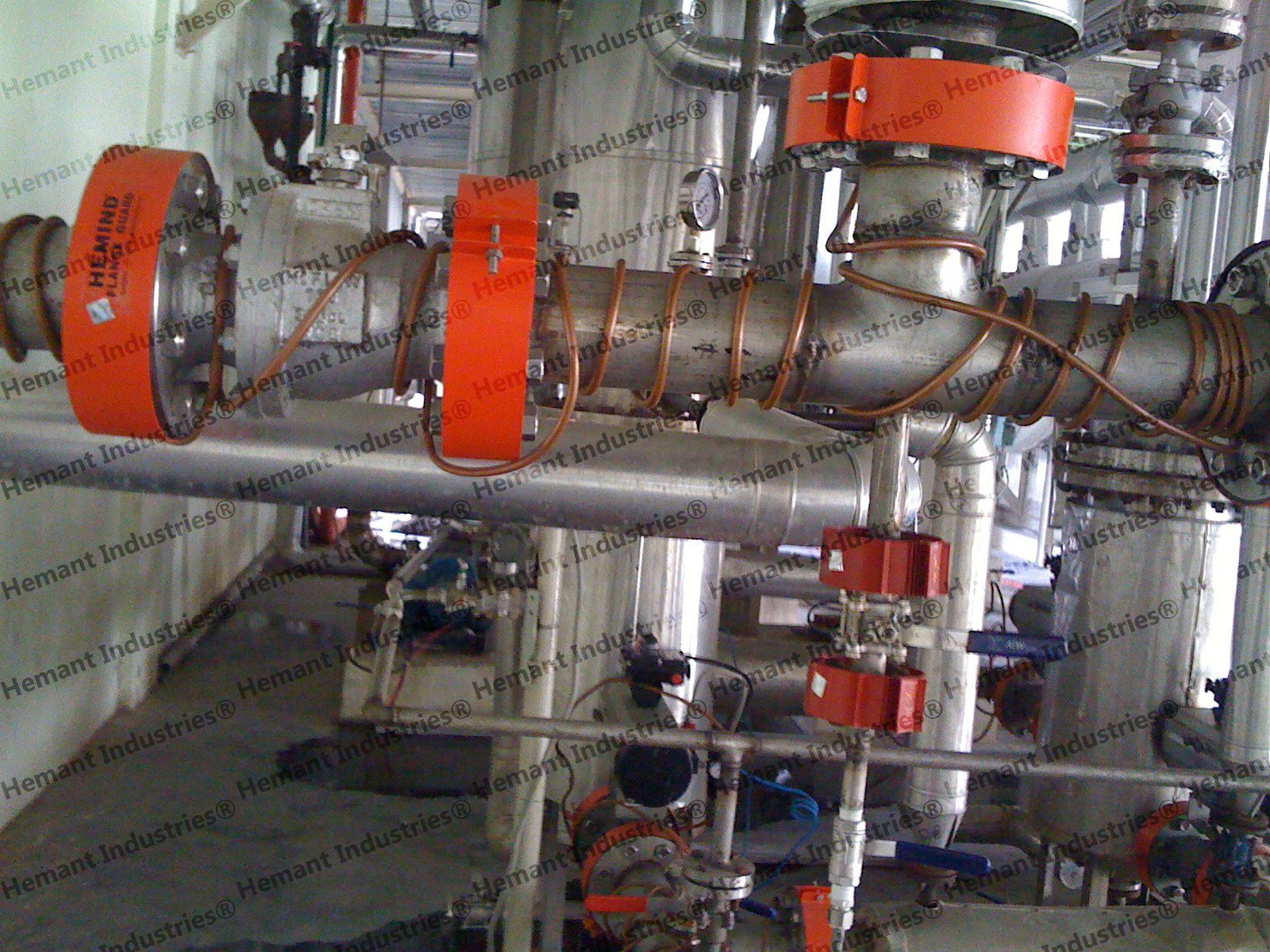

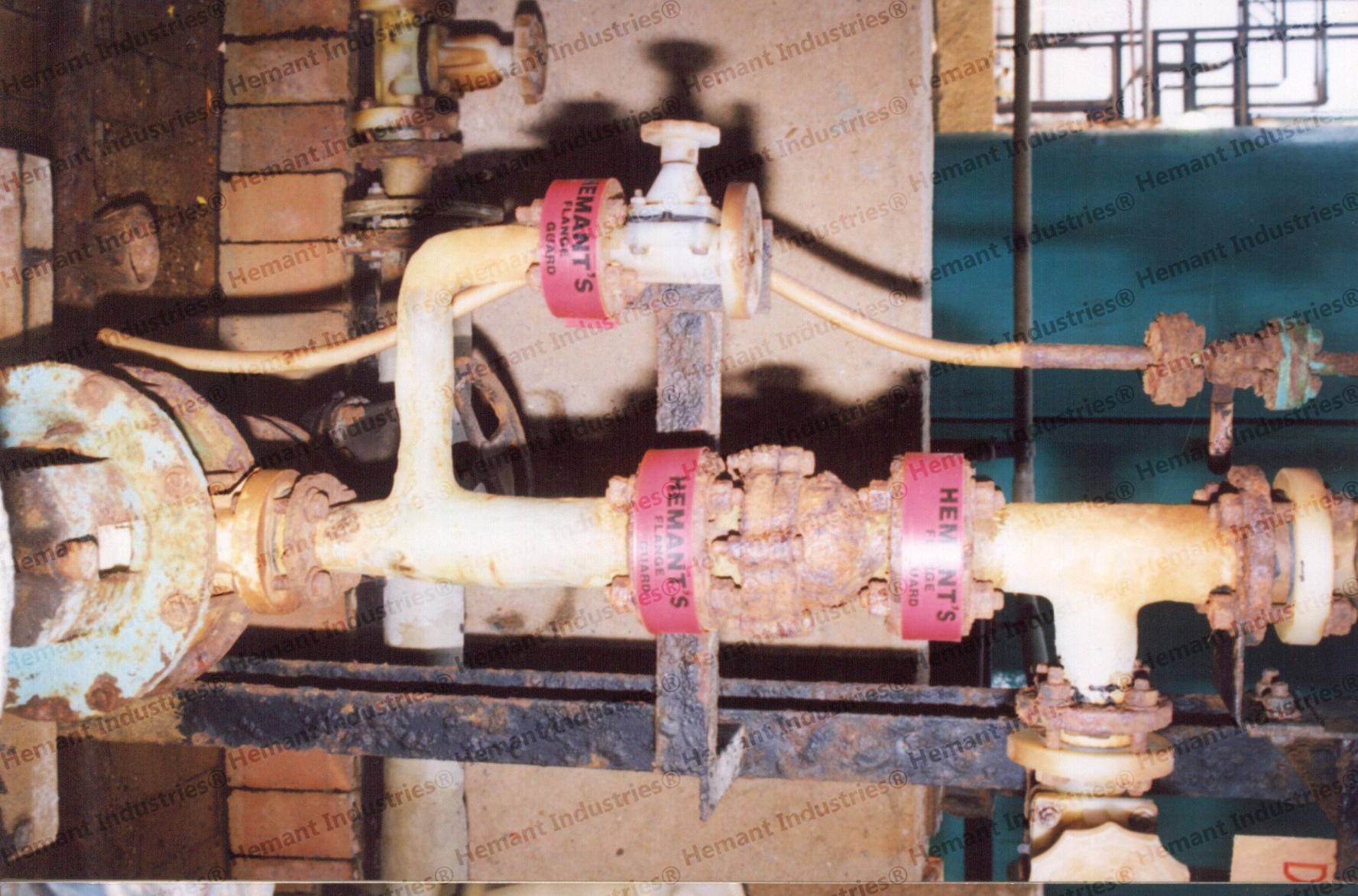

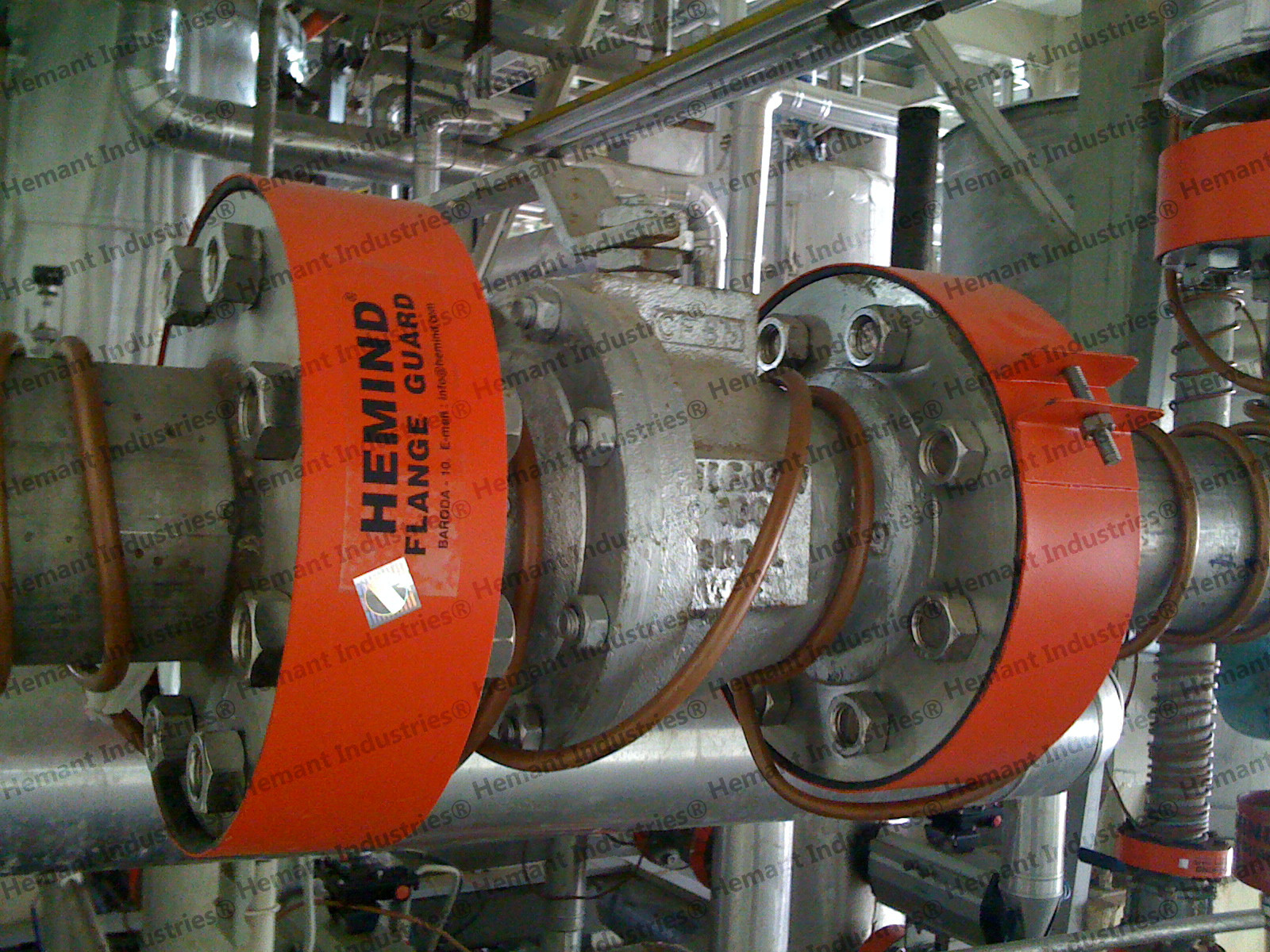

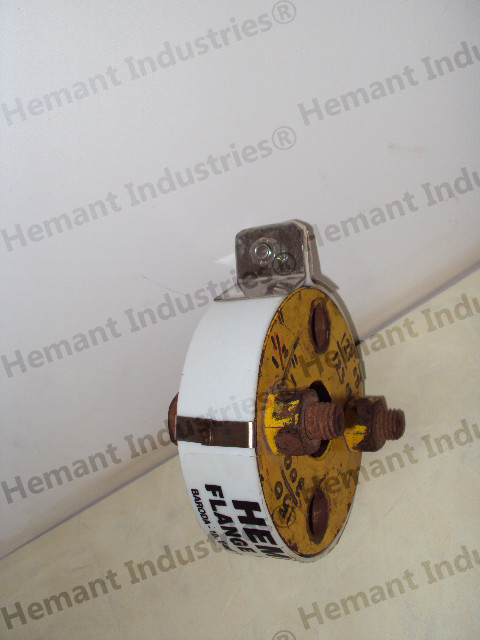

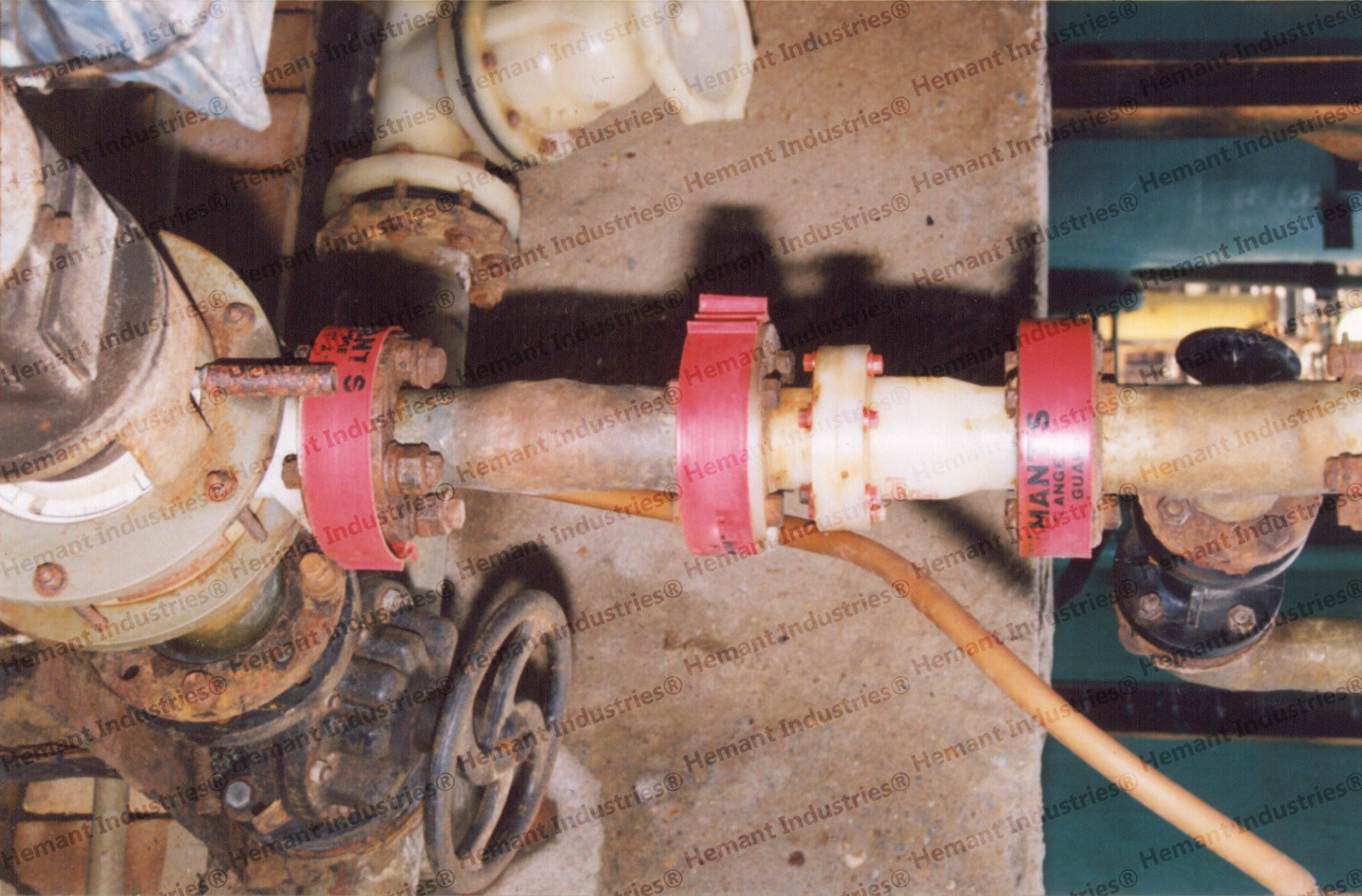

Product Gallery

APPLICATIONS

  • HEMIND®'s FLANGE GUARD is a simple single joint strap, to be used to fix on the flange joints. It is made of Polypropylene and is durable and has got resistivity for high pressures (about50kg/cm2) and high temperature (about 150 deg.C.)It can be used in acids; for that matter on all solvents.
  • It does not require any hardware for fixing and is very easy to mount. The inside grip prevents it from sliding off from the joint.
  • Available in various sizes. For your specific application, we can help you with the altered material of construction for the flange guard.

Type MOC Size Image

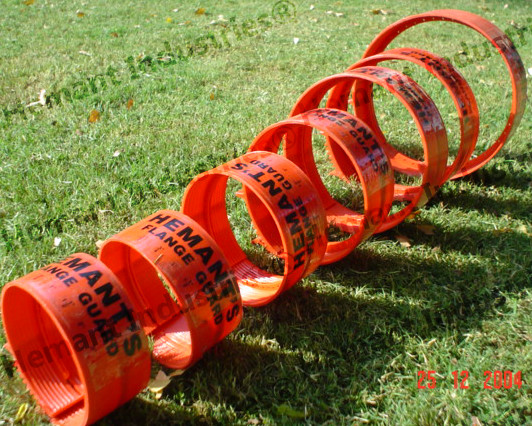

STRAPE TYPE PP ½” TO 4” Flange Guard

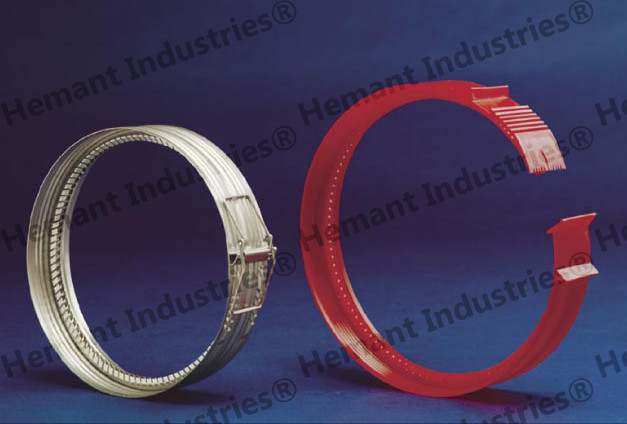

LOCK TYPE PP ½” TO 24” or as per client’s requirement Flange Guard

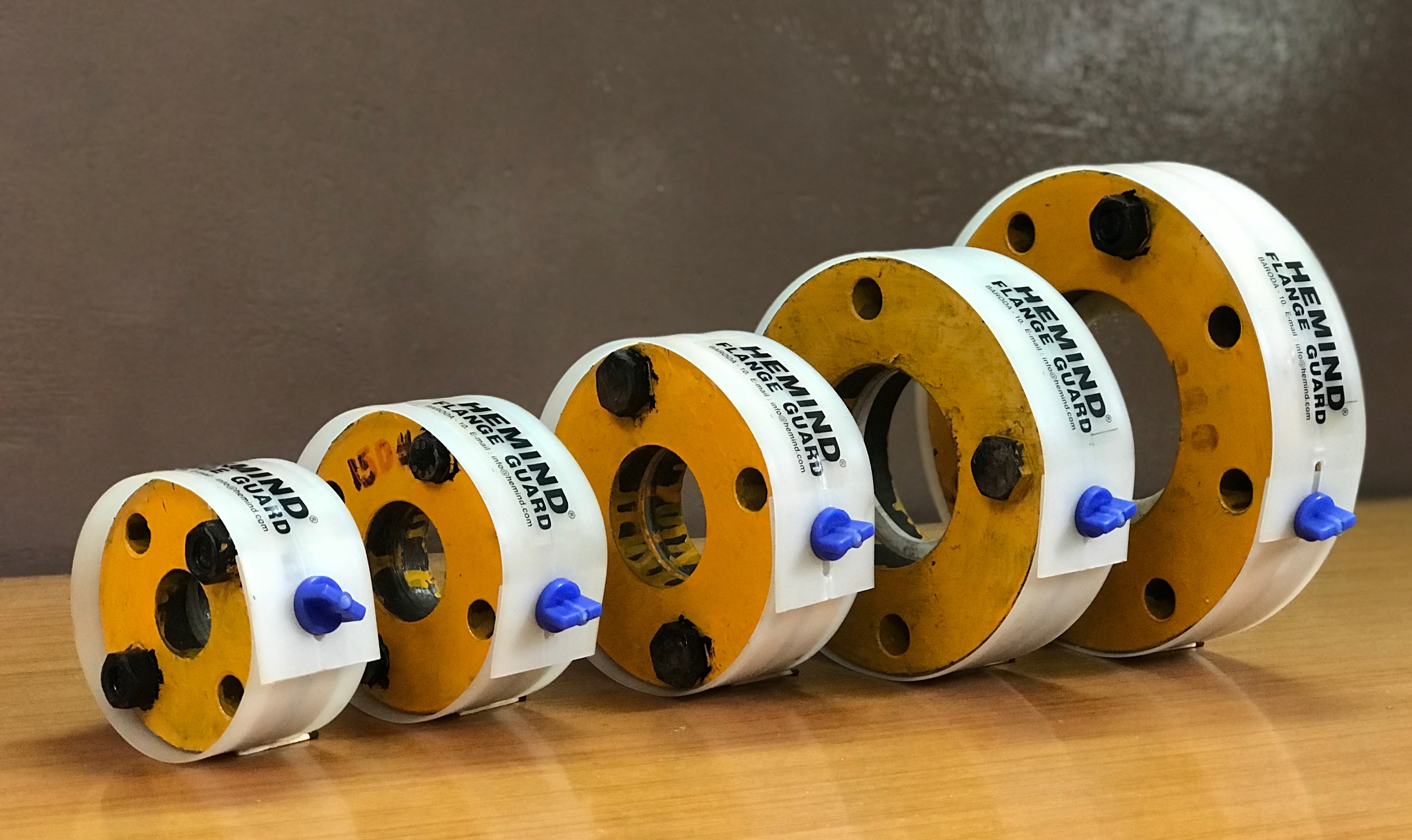

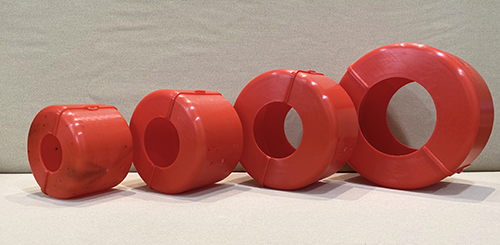

BOX TYPE PP 1” , 1.5” , 2”, 3” Flange Guard

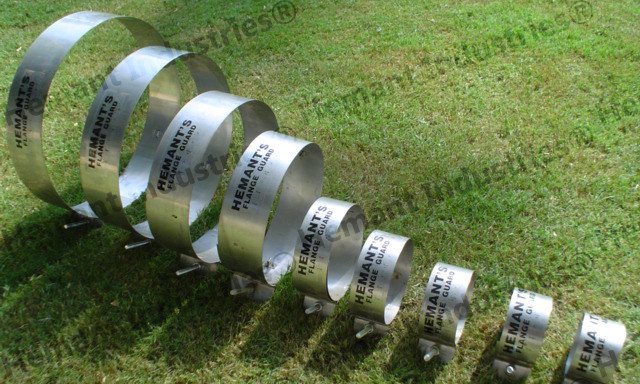

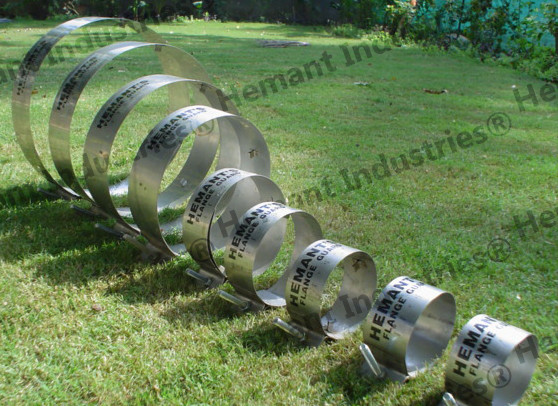

STRAPE WITH HARDWARE MS/ MSRL/ SS ½” TO 24” or as per client’s requirement Flange Guard

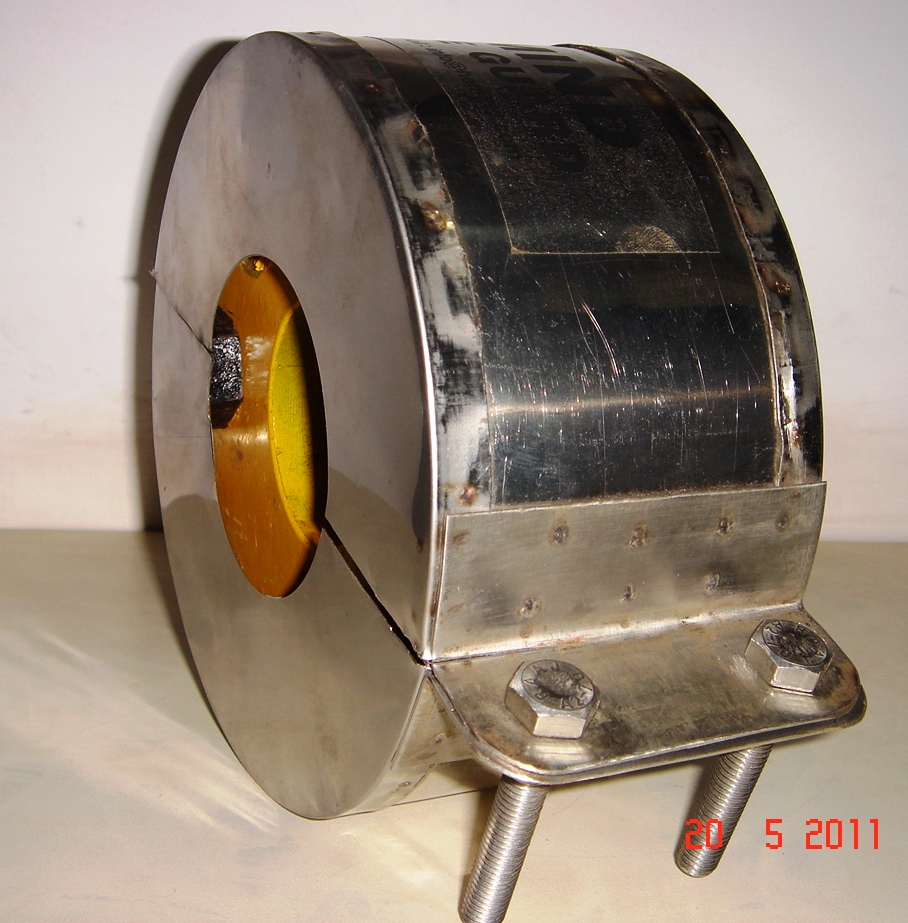

BOX TYPE MS / SS ½” TO 4” Flange Guard

IN MOC: PP, SIZES AVAILABLE UPTO 3”. WE MAKE IN 150#, 300#, DIN STANDARDS
